Soil Improvement Construction Vibroflot Equipment 426 Mm Diameter 1450rpm
Quantity
-
+

Soil Improvement Construction Vibroflot Equipment 426 Mm Diameter 1450rpm

    vibro piling equipment

    vibroflot drive pile machine


    Place of Origin: CHINA


    Brand Name: BVEM


    Certification: ISO 9001:2015


    Model Number: BJV130E-426


Product Details

Product Name:
Vibrator Pile Device
Rated Current(A):
255
Max Rotation Speed(rpm):
1450
Max Amplitude (mm):
17.2
Vibration Power(kN):
208
Length(mm):
2963

Payment & Shipping Terms

Minimum Order Quantity
1
Price
Negotiable
Packaging Details
WOODEN CASE
Delivery Time
15 WORK DAYS
Payment Terms
L/C, T/T
Supply Ability
600 SETS PER YEAR

Product Description:

Soil improvement construction vibroflot equipment of 426 mm diameter with high performance

The Top Feed Electric Vibroflot Spec.
Type Power
(kW)
Rated current(A) Max rotation speed(rpm) Max amplitude
(mm)
Vibration power(kN) Weight (kg) Outer diameter(mm) Length(mm)
BJV130E-426 130 255 1450 17.2 208 2320 426 2963
BJV150E-426 150 290 1450 18.9 276 2516 426 3023
BJV180E-426 180 350 1450 18.9 276 2586 426 3100

Vibroflotation:

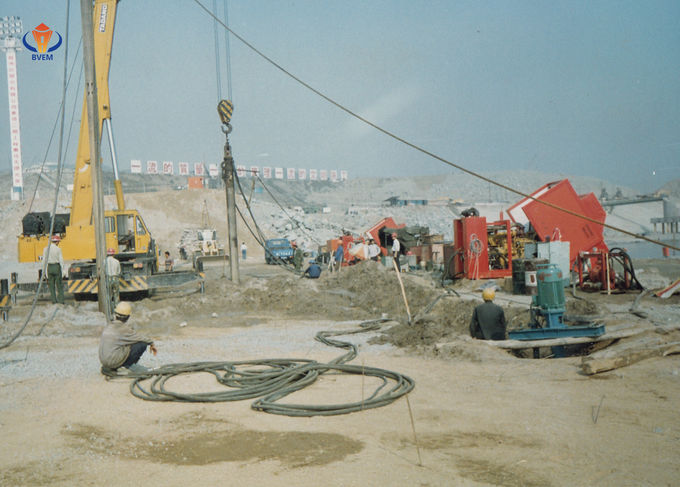

vibroflotation is one of a typical technique which is a widely used application for foundation soil improvement. In vibroflotation construction, vibroflot equipment makes a joint action of horizontal vibration and high pressure water or air shock to compact the loose sand layer or formed in soft soil of gravel column to compose the composite foundation with original soil together, finally achieve the improvement of soil by load capacity, settlement controlling as well as the anti-seismic capacity. Vibroflotation is often used in foundation treatment of dams, oil fields, power plants, ports, airports, bridges, etc.

BVEM profile (Beijing Vibroflotation Engineering Machinery Co., Ltd.)

BVEM focus on vibroflotation market and formed a business platform with vibroflotation technique as core, on which there are three main business including the manufacturing and integration of vibroflotation equipment, sales and service for vibroflotation equipment and foundation improvement construction undertaking. BVEM is the largest manufacturer of electrical vibroflot in Asia and one of the authors of Chinese vibroflot manufacturing code.



BVEM built 23000 square meters of modern production base in Beijing tongzhou district, where has integrated workshops of mechanical processing, electrical, equipment assembly, maintenance. Combining with test site and storage warehouse, the capacity of production and technique has been best in the industry.

Company set up Marketing Department, engineering department, after-sales service department, research and development department and other functional departments, to implement customer and market orientated diversification business strategy, with the purpose of "create high-quality goods, outperform to serve vibroflotation industry".
