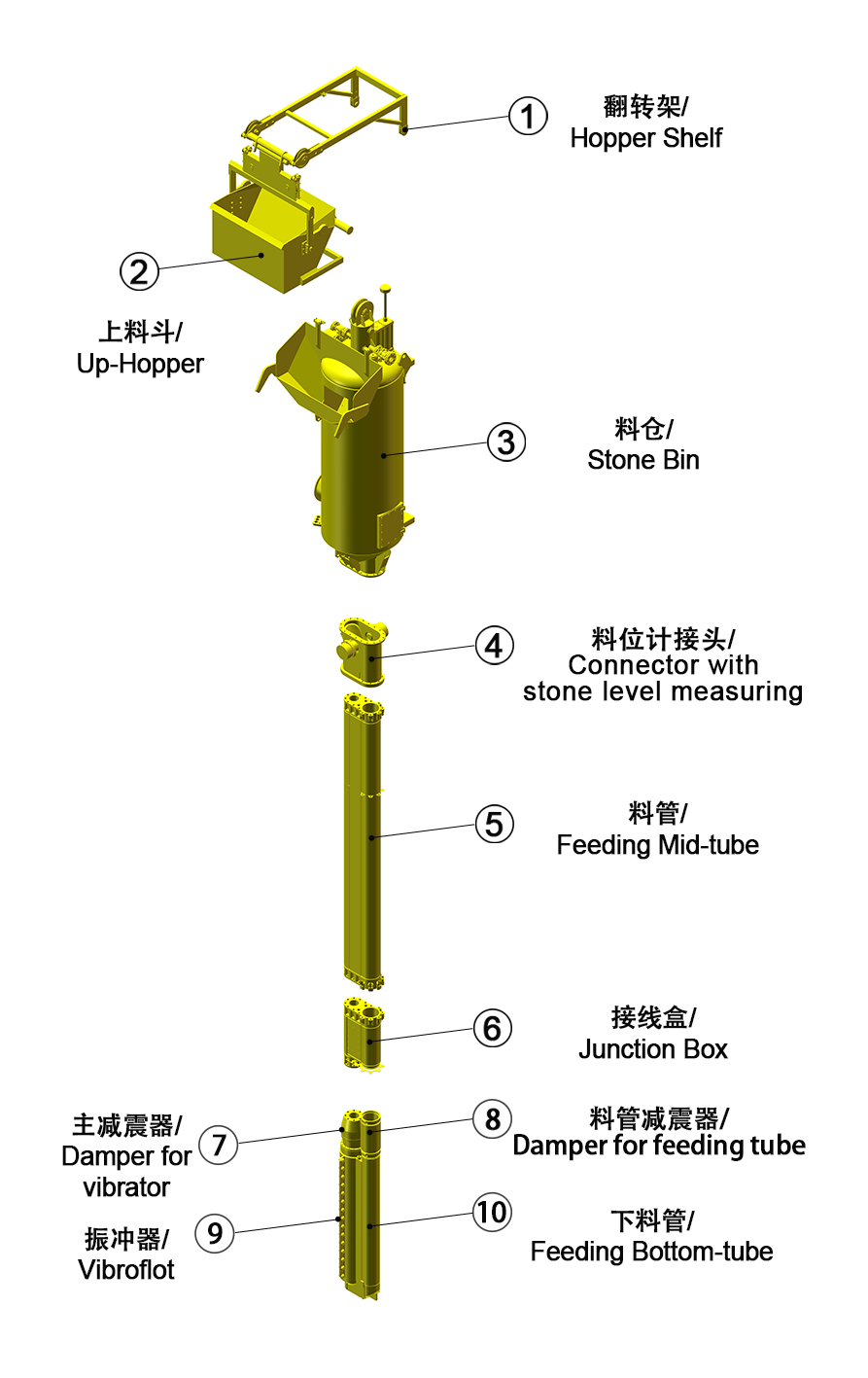

Bottom Feed Vibroflot
-
Overview
Used for the silty clay soil condition where shearing strengthen of non-drainage less than 20Kpa.
Used for under-water vibro construction.
Characteristics:
The vibroflot barrel and the motor housing are made of high strength forged steel.
The motor coil adopts high temperature aging film envelop, long service life and good insulation effect.
Unique circulating water cooled motor structure, good heat dissipation with high efficiency.
Both vibroflot and motor are imported with FAG original bearing.
Double-deck vibrating head design with good resistance, easy to replace.
Unique bearing oil lubrication, further improve bearing life.
Parameters:
The Bottom Feed Electrical Vibroflot Spec. Type BJZC-BFS-400-180 Power 180 Voltage 380 Frequency 50 Rotation speed 1200-1800 Working pile diameter 900-1200 Amplitude (at Tip) 18.9 System pressure 6 Vibration force 276 Hopper volume 1.2 Pipe diameter DN250 Control type Inverter Control Cooling-down method Circulating water cooling Air flow rate 10 Vibrator size 2600 x 600 x 700 The bin size 4800 x 1300 x 1300 Extension tube size 5000 x 300 x 600 Weight (Standard part + Extension tube) 9+1.3xn -

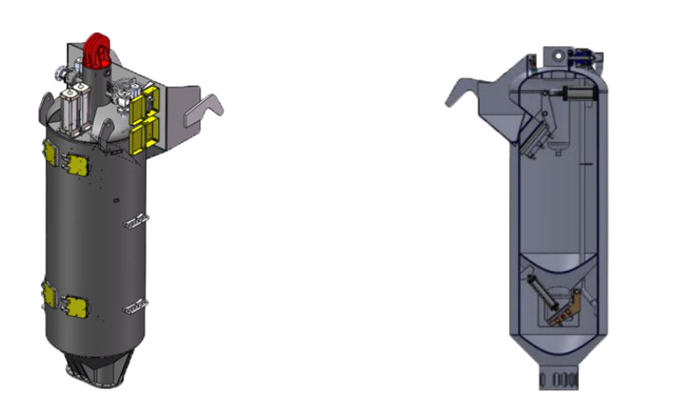

Double Lock Pressure Chamber:
The valve opens easily and close more tightly.
Pneumatic control with 24VDC power supply, safe and reliable.

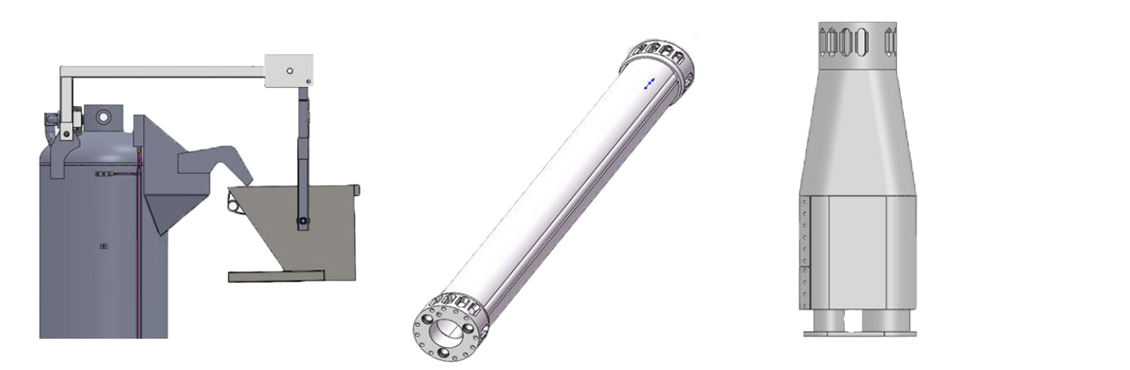

Stone Conveying System:
Stone conveying reliable and energy saving.
Beautiful appearance and, strong strength and convenient connection.
Precision machining, reliable sealing.
