BJV-377 - Top Feed Vibroflot
Overview:
Gravel or backfill sand is filled from top of borehole.
The most commonly used vibroflotation equipment.
Used for vibro compaction and vibro replacement construction in general condition.
Economy and efficient vibro construction method.

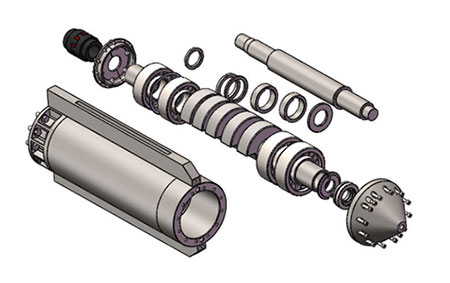

Characteristics:
-
The vibroflot barrel and the motor housing are made of high strength forged steel.
The motor coil adopts high temperature aging film envelop, long service life and good insulation effect.
Unique circulating water cooled motor structure, good heat dissipation with high efficiency.
Both vibroflot and motor are imported with FAG original bearing.
Double-deck vibrating head design with good resistance, easy to replace.
Unique bearing oil lubrication, further improve bearing life.
-

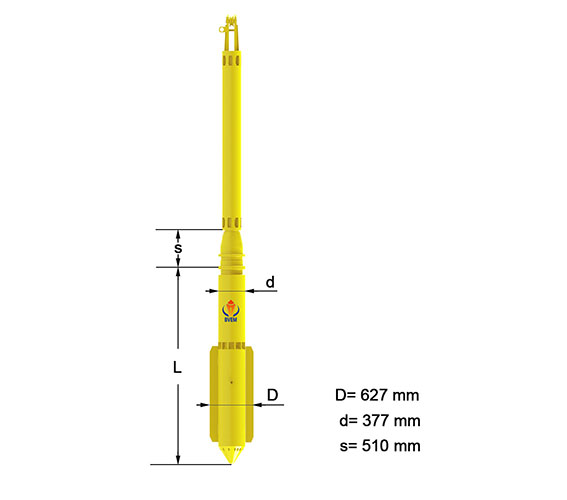

Parameters:
| The Top Feed Electric Vibroflot of BJV-377 Spec. | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Type | Power (kW) | Rated current (A) | Max rotation speed (rpm) | Max amplitude (mm) | Vibration power (kW) | Weight (Kg) | Outer diameter (mm) | Length (mm) | customization |
| BJV75E-377 | 75 | 148 | 1450 | 17.5 | 188 | 1828 | 377 | 3110 | N |
| BJV100E-377 | 100 | 195 | 1450-1800 | 19 | 180-276 | 1880 | 377 | 3215 | Y |
| BJV130E-377 | 130 | 255 | 1450-1800 | 19 | 180-276 | 1900 | 377 | 3355 | N |
| BJV150E-377 | 150 | 290 | 1450-1800 | 19 | 180-276 | 2100 | 377 | 3445 | Y |
| BJV180E-426 | 180 | 350 | 1450-1800 | 21 | 180-276 | 2140 | 377 | 3485 | N |
| BJV260E-426 | 260 | 500 | 1450 | 32 | 520 | 3280 | 450 | 3770 | Y |
