BVEM Vibro replacement stone column 377mm 75kw vibro flot machine for compaction piling

Vibroflotation equipment

As a pile driving machine, vibroflot is a typical equipment with big population, high efficiency and better economy.

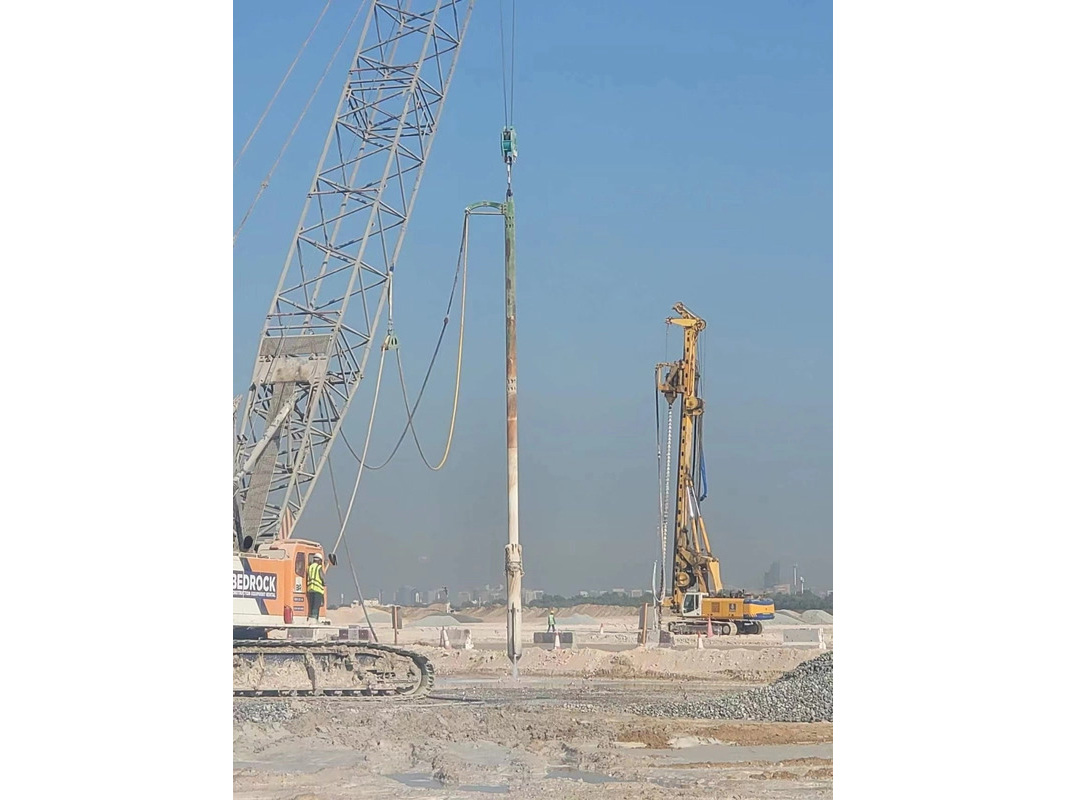

VIBROFLOTATION is one of a typical technique which is a widely used application for foundation soil improvement. In VIBROFLOTATION construction, vibroflot equipment makes a joint action of horizontal vibration and high pressure water or air shock to compact the loose sand layer or formed in soft soil of gravel column to compose the composite foundation with original soil together, finally achieve the improvement of soil by load capacity, settlement controlling as well as the anti-seismic capacity. Vibroflotation is often used in foundation treatment of dams, oil fields, power plants, ports, airports, bridges, etc.

Vibroflot equipment accessories

1.Hanging Head

A key part to guarantee the safety construction of the whole vibroflot. It should be installed at the top of the vibroflot and can be connected with the crane hook

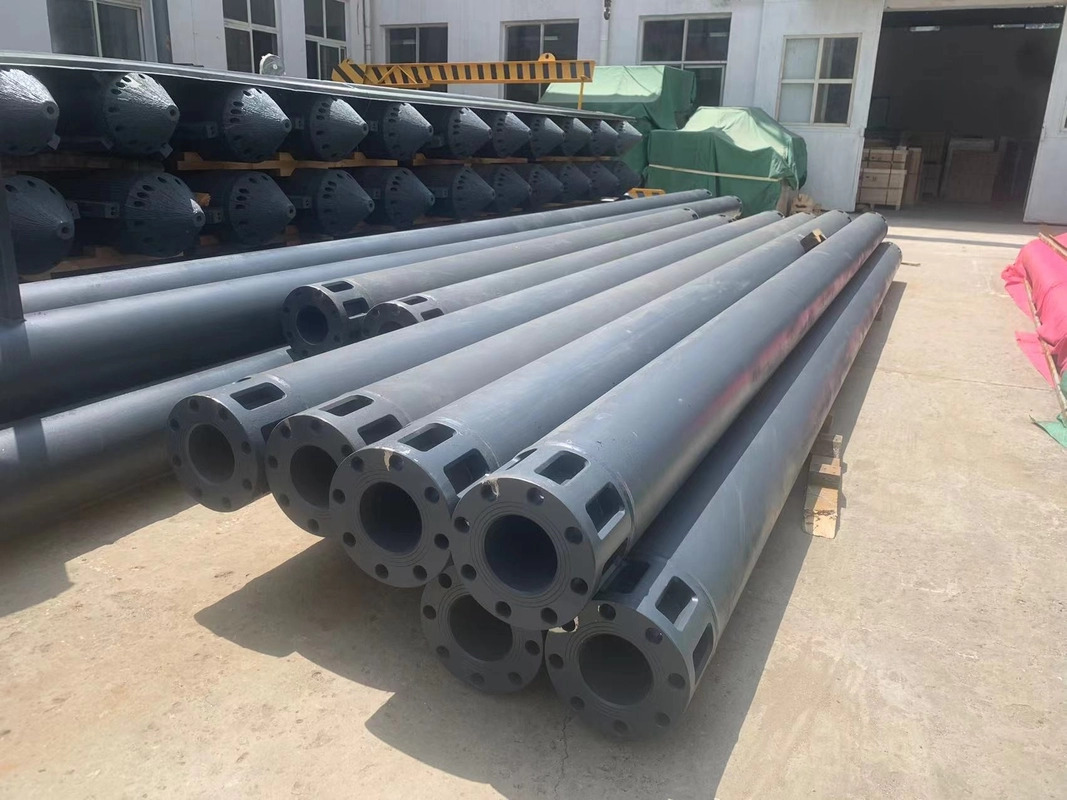

2. Extension Tube

Used for Protecting the the cable and water pipe. It also can be used directly as a water pipe when the demand of water supplying is large

3.Vibration Damper

Reduce the impact of vibration

4.Motor

Used to drive eccentric block rotation of vibroflot

5.Vibration Body

Transmit horizontal vibration force, impact soil, and form into compacted pile body through feeding or compaction effect

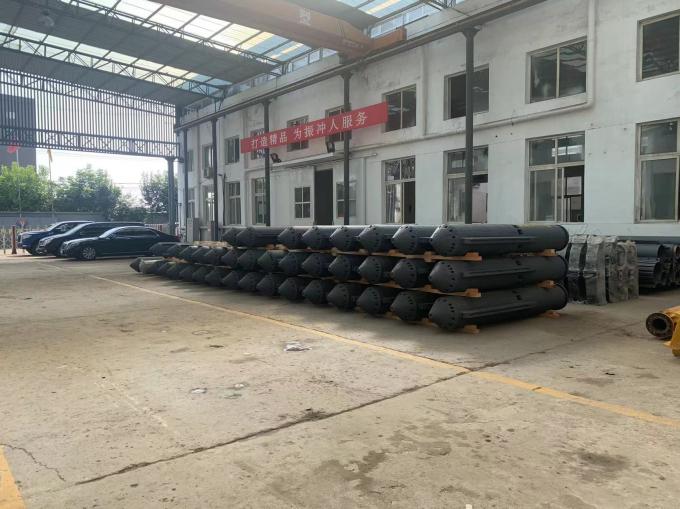

BVEM/ Vibroflotation equipment professional manufacturer in China

BVEM· A pioneer to optimize construction of vibroflotation method

1. In 1997, the construction of the dam in the second phase of the three gorges project was carried out in the process of 30m deep throwing sand blasting

2. For the first time in 2001, the chimney foundation of the dingzhou power plant of 240m was strengthened by vibro - compaction method

3. In 2005, we developed the first integrated bottom feed vibroflot of China, the vibroflotation method began to treat the soft base of the soil whose Cu(shear strength) is less than 20KPa

4. In 2007, hydraulic vibroflot was used to handle the foundation of the pudu river power station,.This is the first time the treated depth achieved 32.7m in China

5. In 2014, the first YZ125KW hydraulic vibroflot was developed.

With 30 years experience of vibroflotation industry, BVEM researched and developed a variety of electric vibroflots motor power from 30 kw to 260 kw. BVEM’s vibroflots has complete specification model which makes widely using of range. The quality of the equipment and performance have already achieved the domestic industry leading level. Through the application of hundreds of domestic and international projects, including the Yangtze River Three Gorges Soft Ground Treatment Project, The Hong kong-Zhuhai-Macao Bridge Project, Dubai Palm Island Project,etc, BVEM has developed to be Asia's larger electrical vibroflots equipment manufacturers, and are being highly recognized by domestic and international clients.
