Beijing Vibroflotation Engineering Machinery Co., Ltd. (BVEM) started from a special R&D team worked for a vibroflot strategic localization project and organized by Ministry of Water Resources and Hydro-power. After 40 years development of products and market, BVEM has grown to be a well-known enterprises in China’s foundation engineering industry. With the main business of complete sets of equipment supplying for vibroflotation construction, BVEM was included into the group of National High & New Technology Enterprise.
bvem vibro compaction piling
vibro flot compaction piling
enhancing seismic capacity vibroflotation compaction
Place of Origin: CHINA
Brand Name: BVEM
Certification: ISO 9001:2015
Model Number: BJV260E-450
Product Details
Payment & Shipping Terms
Product Description:
BVEM Vibro Compaction Piling Driver Machine 450 mm 260 kW enhancing the seismic capacity
| The Top Feed Electric Vibroflot Spec. | ||||||||
| Type | Power (kW) |
Rated current(A) | Max rotation speed(rpm) | Max amplitude (mm) |
Vibration power(kN) | Weight (kg) | Outer diameter(mm) | Length(mm) |
| BJV260E-450 | 260 | 500 | 1450 | 25 | 520 | 3280 | 450 | 3400 |

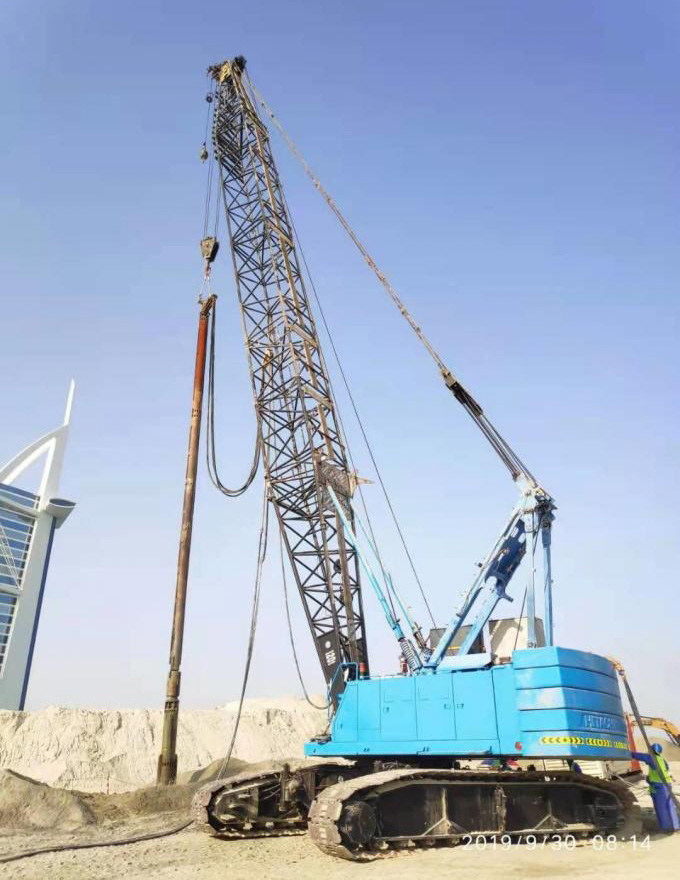

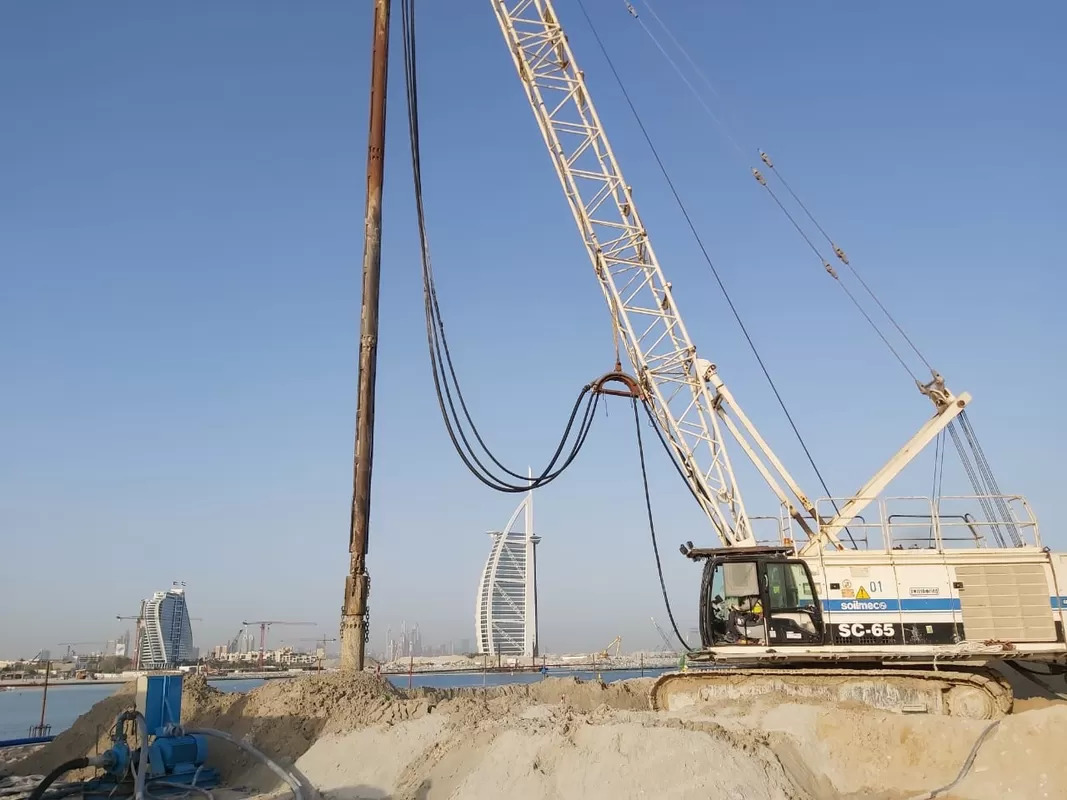

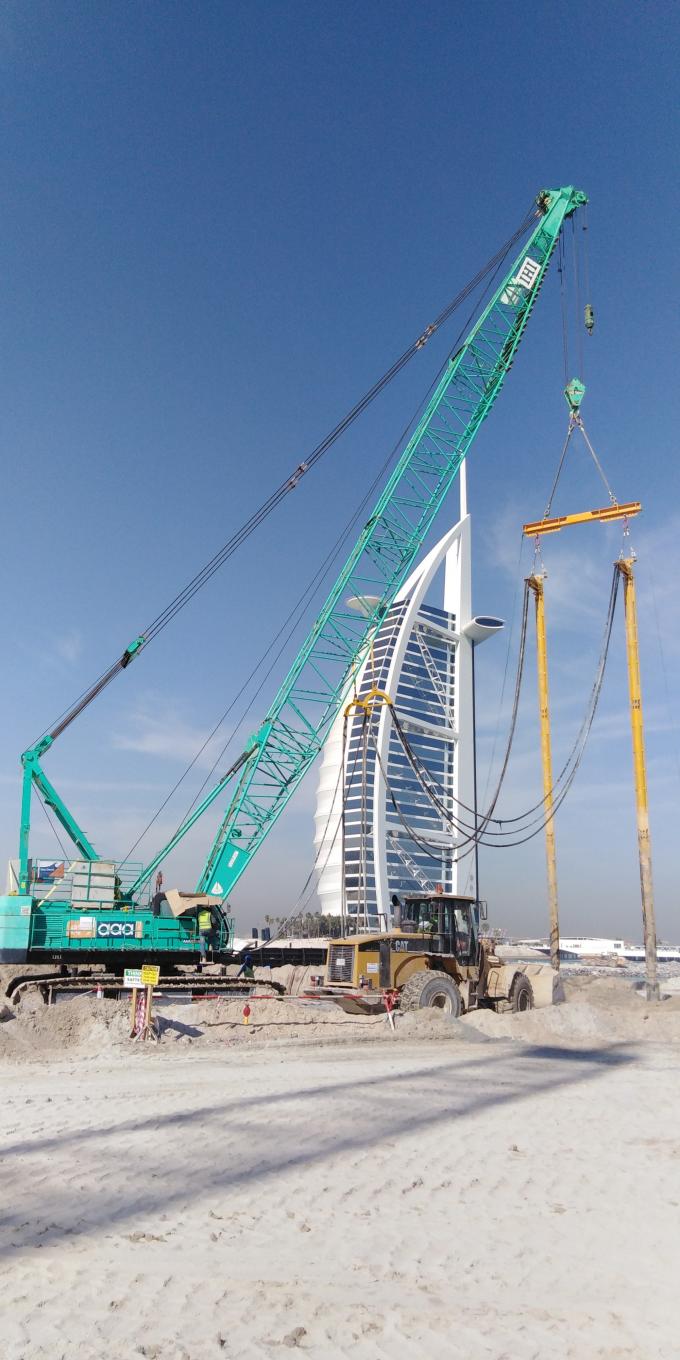

260kw vibro compaction equipment is applied to project of Marsa Al arab phase 2 Dubai
BVEM 260kW vibroflot have big vibration power of 520 kN, max amplitude of 32mm. It is mature electric vibroflot with maximum power in China. It is very popular in vibro-compaction construction because of the higher efficiency.
The technique uses a vibrating probe to penetrate to the necessary depth and to compact the material incorporated. There are a wide variety of construction methods (dry and wet, vibrating probes in the top or bottom of the tool, pendulum or mast-guided system) and methods for incorporating the materials (bottom feed / top feed) that can be used in combination to meet the project requirements and specifications.
BVEM | vibroflot equipment manufacturer in China
1. The first one who introduced and studied vibro compact method in China
2. The first one who developed application in Chinese projects
3. Has the top experts of vibroflotation tech. and experienced construction management team
4. China first one who reserched and produced vibrators
5. China first and only one who produced the Bottom Feed Vibroflot
6. The first one who produced domestic hydraulic-driven vibrator
7. All types&models coverage:30kw-260kw
8. Editor-in-cheif of industry standards <Technical Specification of Vibroflotation Method in Hydrauelectric and Water Resources Projects>(DL/T5214-2005)
9. Editor-in chelf of industry standrds <Electrical Deep Vibrator>(DL/T 1557-2016)
10. China first one who developed vibroflotation application in variety of industry(thermal power, hydraulic power, petrochemical, highway, rail, port etc.)
11. Cooperate with DI and support to formulate the design and construction scheme
Beijing Vibroflotation Engineering Machinery Co., Ltd. (BVEM) started from a special R&D team worked for a vibroflot strategic localization project and organized by Ministry of Water Resources and Hydro-power.
