Beijing Vibroflotation Engineering Machinery Co., Ltd. (BVEM) started from a special R&D team worked for a vibroflot strategic localization project and organized by Ministry of Water Resources and Hydro-power. After 40 years development of products and market, BVEM has grown to be a well-known enterprises in China’s foundation engineering industry. With the main business of complete sets of equipment supplying for vibroflotation construction, BVEM was included into the group of National High & New Technology Enterprise.
vibroflotation process compaction
vibroflotation method compaction
vibroflotation technique compaction
Place of Origin: CHINA
Brand Name: BVEM
Certification: ISO 9001
Model Number: BJV180E-377
Product Details
Payment & Shipping Terms
Product Description:

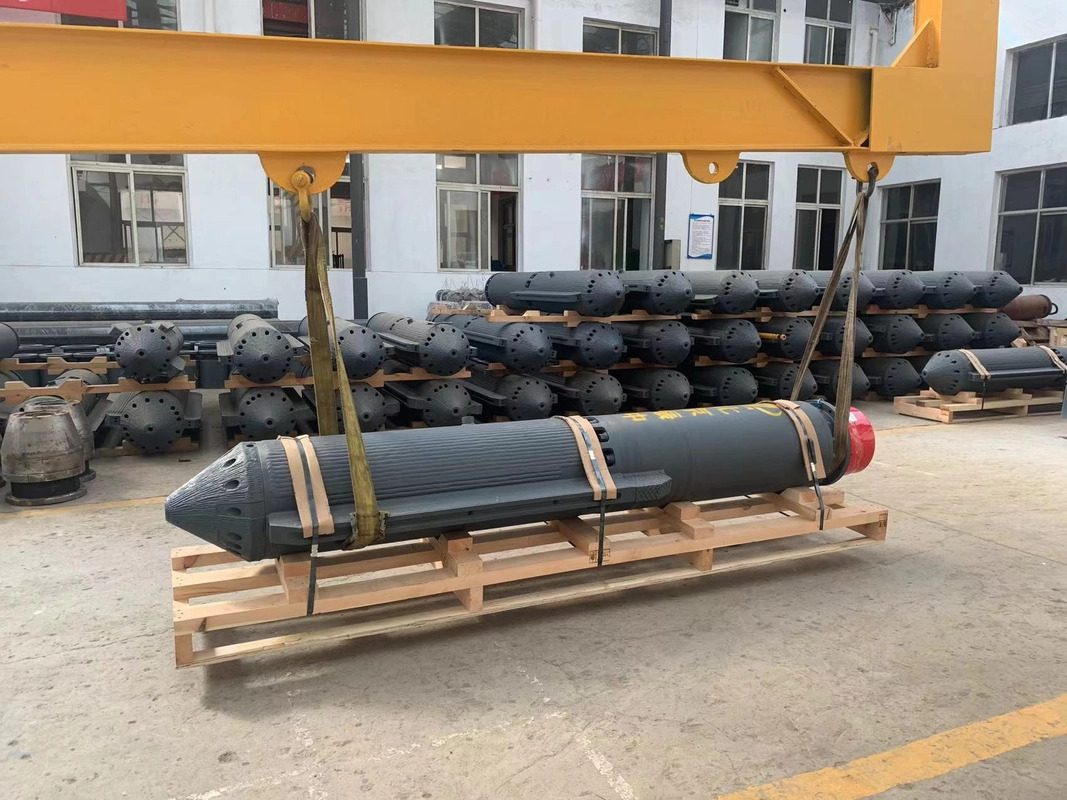

BVEM 377mm 180kW vibroflotation equipment drive vibro replacement stone column compaction pile
| 75- 180 kW Vibro float Spec. | |||
|---|---|---|---|
| Type | BJV180E-377 | BJV75E-377 | BJV130E-377 |
| Power/kW | 180 | 75 | 130 |
| Rotation speed/rpm | 1450 | 1450 | 1450 |
| Amplitude (at Tip)/mm | 16 | 17 | 16 |
| Centrifugal force/kN | 195 | 175 | 195 |
| Weight /kg | 2150 | 2050 | 1920 |
| Diameter/mm | 377 | 377 | 377 |
| Length/mm | 3335 | 3245 | 3000 |
Vibroflotation method
Definition:
Under the joint action of the horizontal vibration of the vibroflot and high pressure water or air, the loose foundation is compacted; or after forming holes in the foundation layer ,the hard coarse particle materials is backfilled to form reinforcement body. Then, composite foundation will be formed by reinforcement and surrounding foundation soil.
Effection:
Pre-settlement, complete the majority of the settlement before the foundation bears the load of the structure.
Increase the relative density of soil, reduce the uneven settlement of foundation.
Stone column can improve the drainage performance of soil, accelerate the consolidation of soil, reduce settlement, improve the bearing capacity and improve the anti-liquefaction performance of soil, improve the seismic grade
Characteristic:
1. The equipment and material are simple, convenient and economical.
2. It is especially suitable for the foundation treatment projects of hydropower stations, petrochemical plants, port terminals, dams and airport runways (to improve some bearing capacity, prevent the uneven settlement of soil or to treat the anti-liquefaction ability of the interlayer in some section of the foundation)
BVEM· professional manufacturer for vibroflot in China
In 1982 year,Powerchina vibroflotation company researched 75kW vibrator,widely used in upstream and downstream cofferdam project of the Three Gorges in 1997.
BVEM was establish in 2007, the company comes from the equipment department of Power china vibroflotation company.
Company vision: Outperform to Serve Vibroflotation
BVEM Company Honor
China first use of 75KW vibrator for the 30-meter depth sand soil treatment(three gorges project).
China first use of hydraulic vibrator for the treatment of the 240-meter chimney foundation.
China first use of hydulic vibrator for the treatment of 32m depth foundation of hydraulic power station.
The first one in China who treated the base of oil storage tank with a diameter of more than 60m by vibroflotation method.
● Company pertencem ao grupo de Powerchina, são avançados e fabricante profissional para o vibroflot em China.
● Acquire muitas patentes relativas ao equipamento do vibroflotation chefe-eidtor.
● The chief-eidtor for vibroflotation construction standands and manufacture standands for electrical vibroflot
● Acquire many certificate of honor, such as High tech Enterprise,3A Credit Enterprise and National level "specialized, refined, and innovative" small giant enterprise
