Beijing Vibroflotation Engineering Machinery Co., Ltd. (BVEM) started from a special R&D team worked for a vibroflot strategic localization project and organized by Ministry of Water Resources and Hydro-power. After 40 years development of products and market, BVEM has grown to be a well-known enterprises in China’s foundation engineering industry. With the main business of complete sets of equipment supplying for vibroflotation construction, BVEM was included into the group of National High & New Technology Enterprise.
BJV180E-377
Vibro Pile Foundation Driving Machine
motor vibro pile foundation
Place of Origin: CHINA
Brand Name: BVEM
Certification: ISO 9001:2015
Model Number: BJV180E-377
Product Details
Payment & Shipping Terms
Product Description:
BJV180E-377 VIbroflot with high powerful motor used for vibro pile foundation driving machine
| 75- 180 kW Vibro float Spec. | |||
|---|---|---|---|
| Type | BJV180E-377 | BJV75E-426 | BJV100E-426 |
| Power/kW | 180 | 75 | 100 |
| Rotation speed/rpm | 1450-1800 | 1450 | 1450 |
| Amplitude (at Tip)/mm | 21 | 16 | 17.2 |
| Centrifugal force/kN | 180-276 | 180 | 208 |
| Weight /kg | 2140 | 2018 | 2073 |
| Diameter/mm | 377 | 426 | 426 |
| Length/mm | 3485 | 2783 | 2883 |
| Diameter of the work pile/mm | (1000-1200) | (700-1200) | (700-1200) |
Vibro compaction technology
Under the effect of vibration, the saturated sand soil liquefaction happen,which make the sand particles re-arranged and the soil interspace reduced.

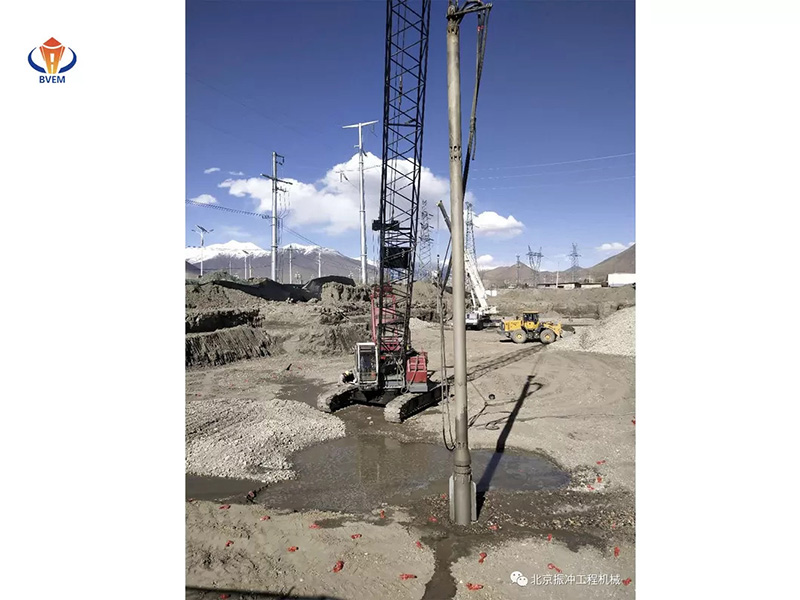

Boring
By vibration and the flushing of water and/or air, the vibroflot penetrates to the designed depth.
Compaction
Compact the soil section by section up to the gound according to the requirements of the compaction current, compaction time and sectional compaction length.
Vibro replacement stone column method
Jet water and vibrate by vibroflot to form holes. Fill in pile holes by section with solid filling materials such as gravel (cobble) etc., to finally form composited foundation.
Boring
By vibration and the flushing of water and/or air, the vibroflot penetrates to the designed depth.
Backfill
Fill stones into the bore-hole, and compact section by section up to the ground according to the requirements of compaction current and the sectional compaction length.
BVEM Whole process service
Geological analysis
BVEM’s geological experts support clients on the professional analysis of soil situation and give the suggestion of feasible solution.
Vibroflotation design
By analysis and calculation result, help clients formulate vibroflotation design scheme, including the pile layout, depth of pile, diameter of pile and volume of feeding stone etc., and quality control method as well as testing method.
Equipment selection
In terms of situation of engineering, with consideration of technology, cost and construction period requirement, recommend the vibroflots model with suitable capacity and high cost performance.
Construction Scheme
According to the situation of engineering, formulate the feasible construction organization scheme, including the number of construction unit, stages and sequence of construction.
Installation&Commissioning
Service engineer reach job-site to guide the installation and commissioning of equipment, make sure equipment normal operation.
Construction Guiding
