- 260kw Top Feed Vibroflot Device For Vibro Compaction Improve Soft Sand Soil Foundation
Quantity
-
+
260kw Top Feed Vibroflot Device For Vibro Compaction Improve Soft Sand Soil Foundation
top feed vibroflot equipment
top feed vibro flot
top feed vibroflotation
Place of Origin: CHINA
Brand Name: BVEM
Certification: ISO 9001:2015
Model Number: BJV260E-450
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
wooden case
Delivery Time
15 work days
Payment Terms
L/C, T/T
Supply Ability
600 sets per year
Product Description:
BVEM 260kw top feed vibroflot device for Vibro Compaction improve soft sand soil foundation
| The Top Feed Electric Vibroflot Spec. | ||||||||
|---|---|---|---|---|---|---|---|---|
| Type | Power (kW) |
Rated current(A) | Max rotation speed(rpm) | Max amplitude (mm) |
Vibration power(kN) | Weight (kg) | Outer diameter(mm) | Length(mm) |
| BJV260E-450 | 260 | 500 | 1450 | 25 | 440 | 3020 | 450 | 3400 |
BVEM 260kW vibroflot has big vibration power of 440 kN, max amplitude of 25mm. It is mature electric vibroflot with maximum power in China. It is very popular in vibro-compaction construction because of the higher efficiency.

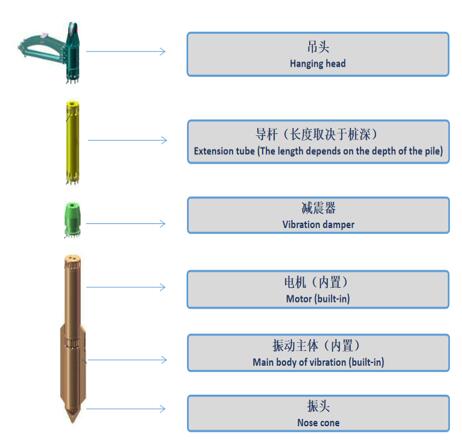

Principal de Vibroflot
O motor especial mobiliza o bloco excêntrico dentro do corpo da vibração através do acoplamento, gerando a força centrífuga e causando a vibração horizontal do vibrador inteiro.
BVEM | vibroflot equipment manufacturer in China
1. Company pertencem ao grupo de Powerchina, são avançados e fabricante profissional para o vibroflot em China.
2. Acquire muitas patentes relativas ao equipamento do vibroflotation chefe-eidtor.
3. The para standands da construção do vibroflotation e standands da fabricação para o vibroflot elétrico.
4. acquire muitos certificado da honra, tal como alto - empresa gigante pequena “especializada, refinada, e inovativa” da empresa da tecnologia, da empresa do crédito 3A e do nível nacional.
5. Products foi reconhecido pelos peritos ultramarinos, de que era a lista no livro.
6. The first one who produced domestic hydraulic-driven vibrator.
7. China primeiro um quem desenvolveu a aplicação do vibroflotation na variedade da indústria (poder térmico, energia hidráulica, petroquímico, estrada, trilho, etc. portuários)
