Beijing Vibroflotation Engineering Machinery Co., Ltd. (BVEM) started from a special R&D team worked for a vibroflot strategic localization project and organized by Ministry of Water Resources and Hydro-power. After 40 years development of products and market, BVEM has grown to be a well-known enterprises in China’s foundation engineering industry. With the main business of complete sets of equipment supplying for vibroflotation construction, BVEM was included into the group of National High & New Technology Enterprise.
vibroflot equipment compaction soil improvement project
top feed vibroflotation equipment
top feed vibroflot equipment
Place of Origin: CHINA
Brand Name: BVEM
Certification: ISO 9001:2015
Model Number: BJV180E-426
Product Details
Payment & Shipping Terms
Product Description:
BVEM Top Feed Vibroflot Application Cases in Vibroflotation Compaction Soil Improvement Project
| Top Feed Vibroflot Spec. | ||||
|---|---|---|---|---|
| Type | BJV75E-426 | BJV130E-426 | BJV180E-426 | BJV260E-450 |
| Power/kW | 75 | 130 | 180 | 260 |
| Centrifugal force/kN | 180 | 208 | 276 | 520 |
| Weight /kg | 2018 | 2320 | 2586 | 3280 |
| Diameter/mm | 426 | 426 | 426 | 450 |
| Length/mm | 2783 | 2963 | 3100 | 3400 |
| Diameter of the work pile/mm | (800-1200) | (800-1200) | (800-1200) | (1000-1500) |
Top Feed Vibroflot Application Case

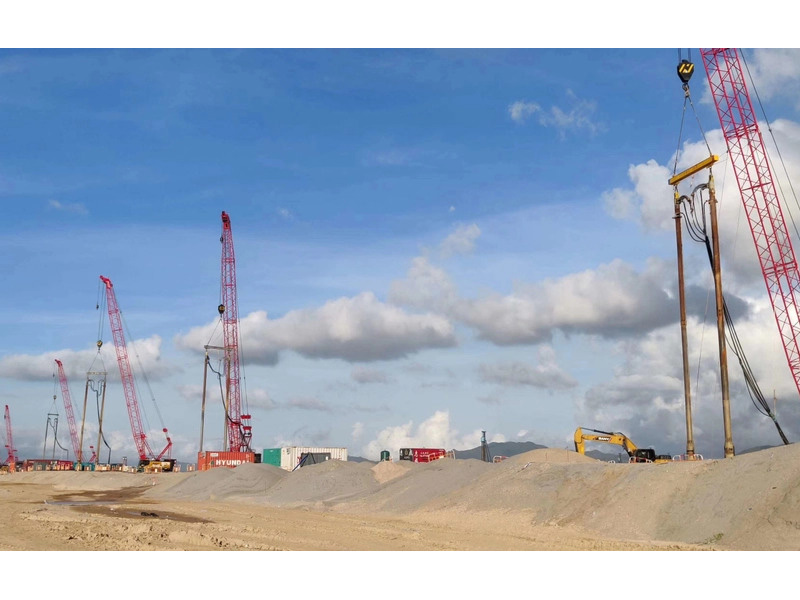

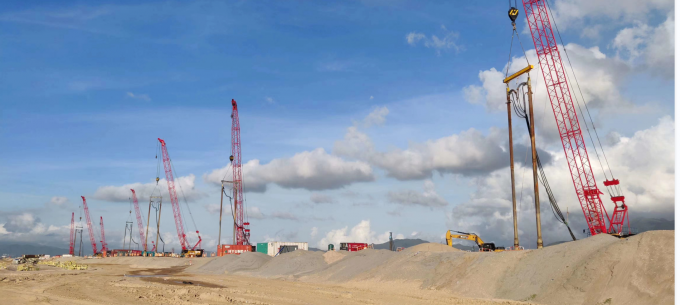

Vibroflotation compaction treatment of c3206 bid section of Hong Kong No. 3 aircraft runway project
The project adopts double hang of top feed vibroflot of 180kW for compaction construction, the pile spacing is up to 4.2m, and the compaction effect meets the design requirements of 95% relative compactness.

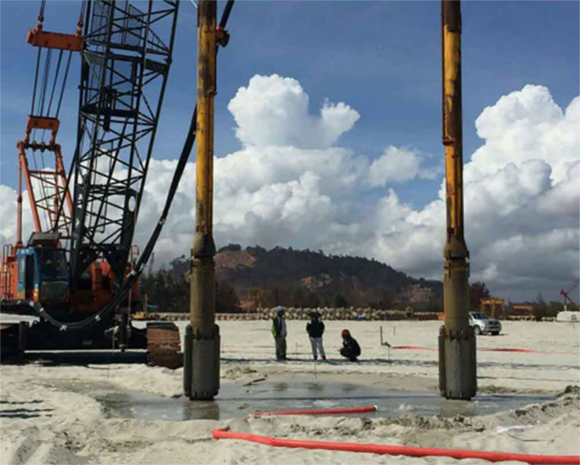

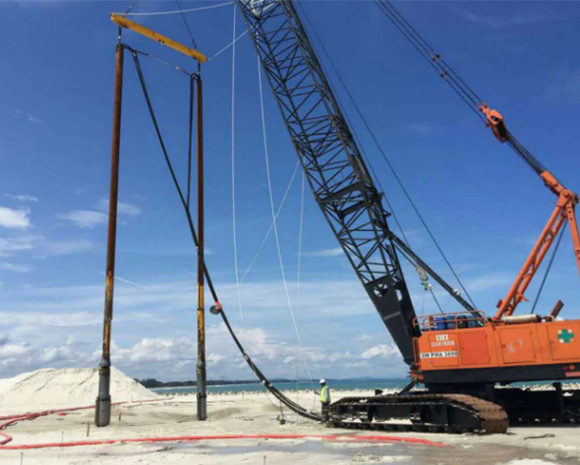

Malaysia Guantan wharf artificial reclamation project
180kW top feed vibro float equipment is used in the project for vibroflotation compaction of 600000 square meters of marine backfill sand.

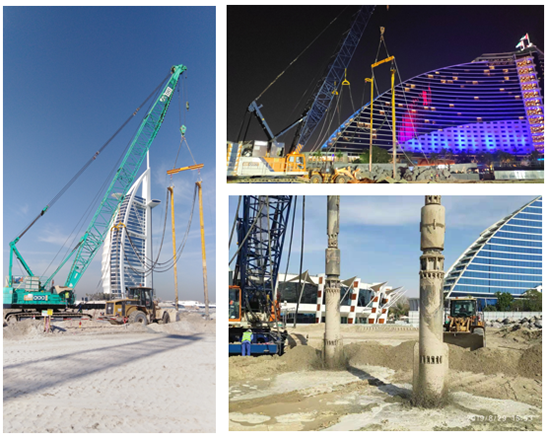

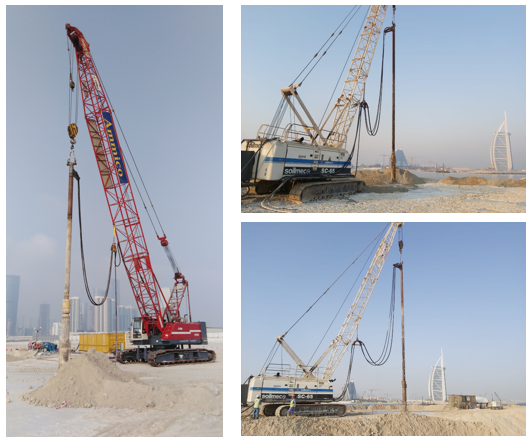

Compaction vibroflotation in Marsa Al arab phase 2 Dubai,Reem Island Development project Abu Dhabi and the Island Jumeirah Dubai
260kw top feed vibroflot device is applied to vibroflotation compaction construction in sand foundation, the vibroflotation range of pile body can reach 4 ~ 5m.
Vibroflotation benefits
The deep vibro techniques present a very versatile ground improvement method that can be adjusted to a wide variety of ground conditions and foundation requirements. Its execution is comparatively fast even if large volumnes of soil are to be improved and subsequent structural works can follow very quickly.The soil improvement enables the contractor to utilise standard shallow footings which,in turn,leads to additional savings.
Another advantage is the environmental friendliness of vibro techniques,as natural and in situ materials are used. In addition, only a comparatively small quantity of soil is removed during the process.
China Vibroflot Supplier - BVEM· The top-level researcher of Vibrator in China
Researched and produced vibrators in power of 30KW,55KW,75KW since 1977 to 2005
Researched and produced 150kw vibrator in 2006
Researched and produced 180kw vibrator in 2009
Produced Bottom Feed Vibrator with double lock pressure bunker in 2012
Researched and produced 260kw vibrator in 2014
Researched and produced Z125 Hydraulic-driven vibrator in 2014
Lauched Vibrator performance testing equipment in 2014
Beijing Vibroflotation Engineering Machinery Co., Ltd. (BVEM) started from a special R&D team worked for a vibroflot strategic localization project and organized by Ministry of Water Resources and Hydro-power.
