Beijing Vibroflotation Engineering Machinery Co., Ltd. (BVEM) started from a special R&D team worked for a vibroflot strategic localization project and organized by Ministry of Water Resources and Hydro-power. After 40 years development of products and market, BVEM has grown to be a well-known enterprises in China’s foundation engineering industry. With the main business of complete sets of equipment supplying for vibroflotation construction, BVEM was included into the group of National High & New Technology Enterprise.
electrical vibroflotation device
75kw vibroflotation device
180kn vibroflotation device
Place of Origin: CHINA
Brand Name: BVEM
Certification: ISO 9001:2015
Model Number: BJV75E-426
Product Details
Payment & Shipping Terms
Product Description:
Electrical vibroflotation device to improve soft foundation driving stone column pile 75kW
| 75kW Vibroflot Spec. | |
|---|---|
| Type | BJV75E-426 |
| Power/kW | 75 |
| Rotation speed/rpm | 1450 |
| Amplitude (at Tip)/mm | 16 |
| Centrifugal force/kN | 180 |
| Weight /kg | 2018 |
| Diameter/mm | 426 |
| Length/mm | 2783 |
| Diameter of the work pile/mm | (800-1200) |
Vibroflot characteristics
Gravel or backfill sand is filled from top of borehole
The most commonly used vibroflotation equipment
Used for vibro compaction and vibro replacement construction in general condition
Economy and efficient vibro construction method

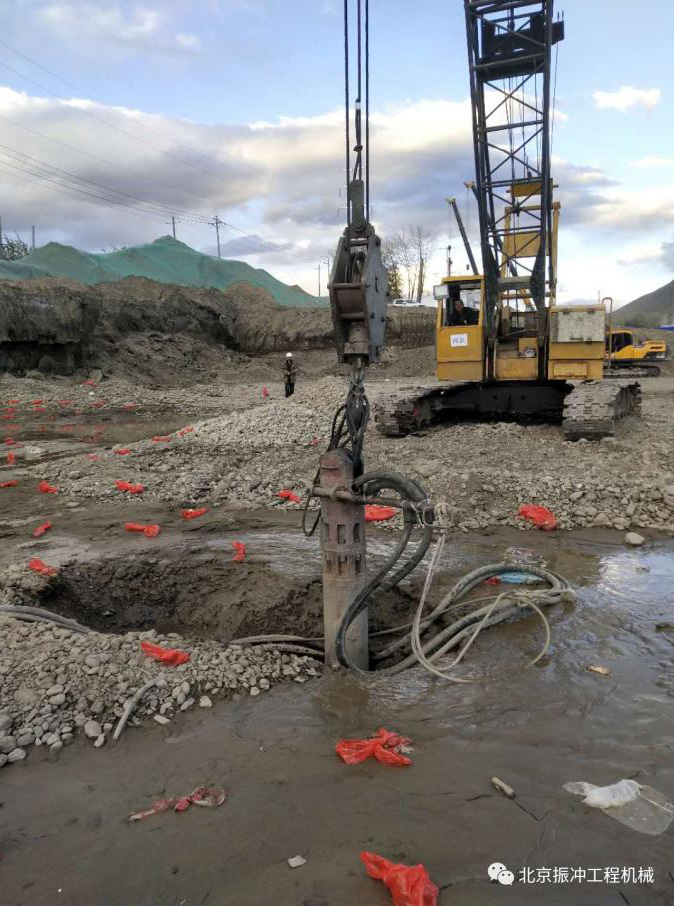

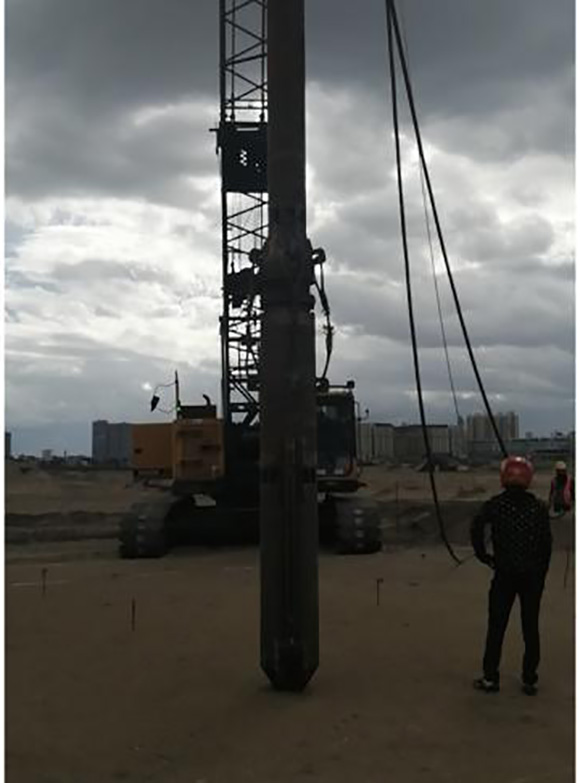

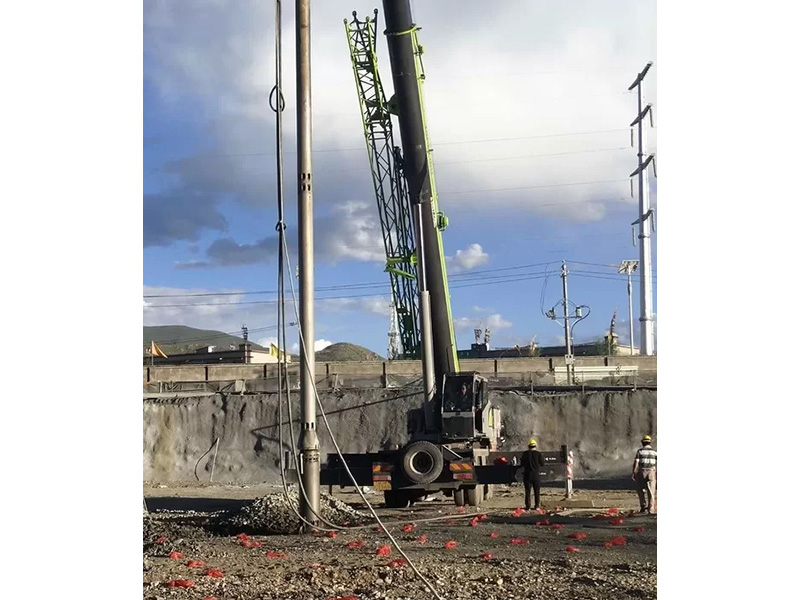

The working principle of vibroflot
The working principle of the vibrator is that the special motor mobilizes the eccentric block within the vibrating body through coupling, generating centrifugal force, and causing horizontal vibration of the whole vibrator. The vibrator can be applied in the construction of packing vibro pile and compaction vibro pile. It is applicable for the consolidation of foundations such as gravelly soil, sandy soil, silt soil, cohesive soil, artificial soil and collapsible soil etc., as well as increasing density and resisting liquefaction of various types of liquefiable soil. After vibration shock process, the stratum can stand a certain degree of dynamic load, and can improve bearing capacity of foundation soil, relative density and liquefaction resistance capacity.
