China Sand Compaction 180kw Vibroflotation Equipment Driver improving bearing capactiy

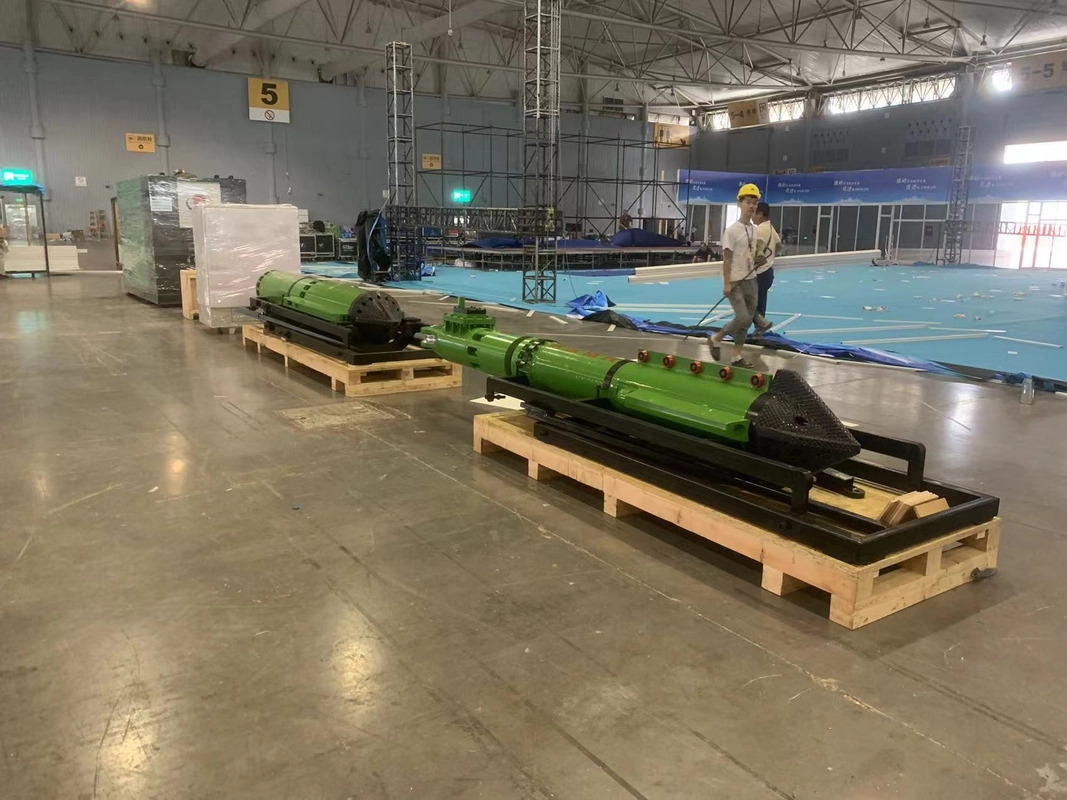

BVEM vibroflot overview

● The vibroflot barrel and the motor housing are made of high strength forged steel.

● The motor coil adopts high temperature aging film envelop, long service life and good insulation effect.

● Unique circulating water cooled motor structure, good heat dissipation with high efficiency.

● Both vibroflot and motor are imported with FAG original bearing.

● Double-deck vibrating head design with good resistance, easy to replace.

● Unique bearing oil lubrication, further improve bearing life

Vibroflot characteristics

TECHNIQUE

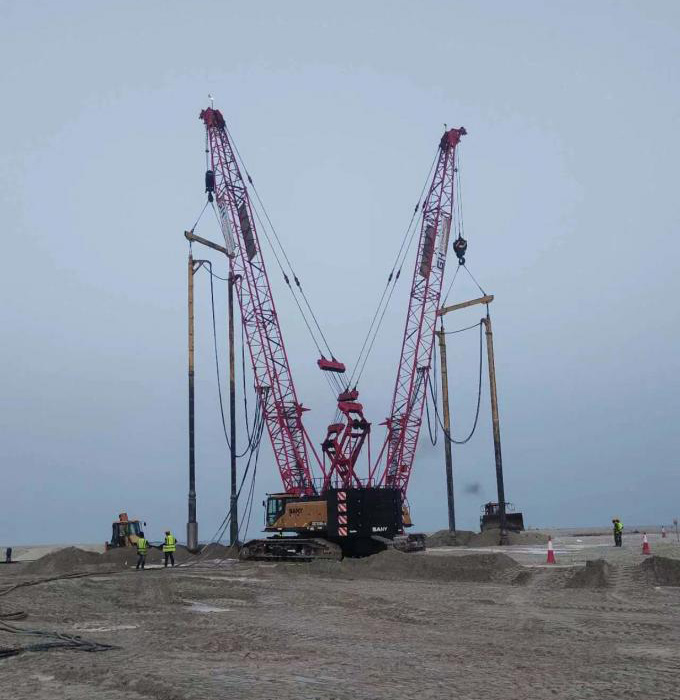

Loose soil or fill can be compacted at depth through insertion of vibrating probes together with a large volume of water to generate localised liquefaction of the soil. This enables the particles to rearrange themselves in a denser formation and thus increases the overall density of the soil.

ADVANTAGES

The use of a vibrating probe makes it possible to reach large depths compared to compaction carried out at the surface (dynamic, rapid impact). Vibrocompaction relies on overburden pressure of soils above the treatment level (included collapse) therefore it is not very effective in the top two metres of soil generally due to a lack of vertical confinement.

APPLICATIONS

This technique is usually employed to stabilise or treat hydraulic fill, for example to prevent liquefaction or limit thrust behind quay walls.

BVEM | vibroflot equipment manufacturer

BVEM focus on vibroflotation market and formed a business platform with vibroflotation technique as core, on which there are three main business including the manufacturing and integration of vibroflotation equipment, sales and service for vibroflotation equipment and foundation improvement construction undertaking. BVEM is the larger manufacturer of electrical vibroflot in Asia and one of the authors of Chinese vibroflot manufacturing code.
