Beijing Vibroflotation Engineering Machinery Co., Ltd. (BVEM) started from a special R&D team worked for a vibroflot strategic localization project and organized by Ministry of Water Resources and Hydro-power. After 40 years development of products and market, BVEM has grown to be a well-known enterprises in China’s foundation engineering industry. With the main business of complete sets of equipment supplying for vibroflotation construction, BVEM was included into the group of National High & New Technology Enterprise.
stone column static load test equipment
pile quality static load test equipment
foundation bearing capacity static load tester
Place of Origin: CHINA
Model Number: YL-PLT1s
Payment & Shipping Terms
Product Description:
Stone column pile quality static load tester equipment system for foundation bearing capacity
| Model | YL-PLT1s |
|---|---|
| Main control unit | Low power embedded industrial computer |
| Display screen | 1024×768 |
| Storage | 8G |
| Power supply | Device(AC220V;DC12.6V),Oil pump (AC380/220V available) |
| Operation method | Touch screen |
| Data transmission | USB2.0 |
| Measuremen tand control method | Wired/Wireless |
|
Wireless measurement and control
distance
|
>300m |
| Number of control points | The wireless mode supports up to 4 tests at the same time. |
| Data backup | Real-time automatic back up |
| Video surveillance | Independent HD camera |
| Working temperature | -30-55 |
| Weight | 1.6kg |
| Dimension | 375mm×300mm×90mm |

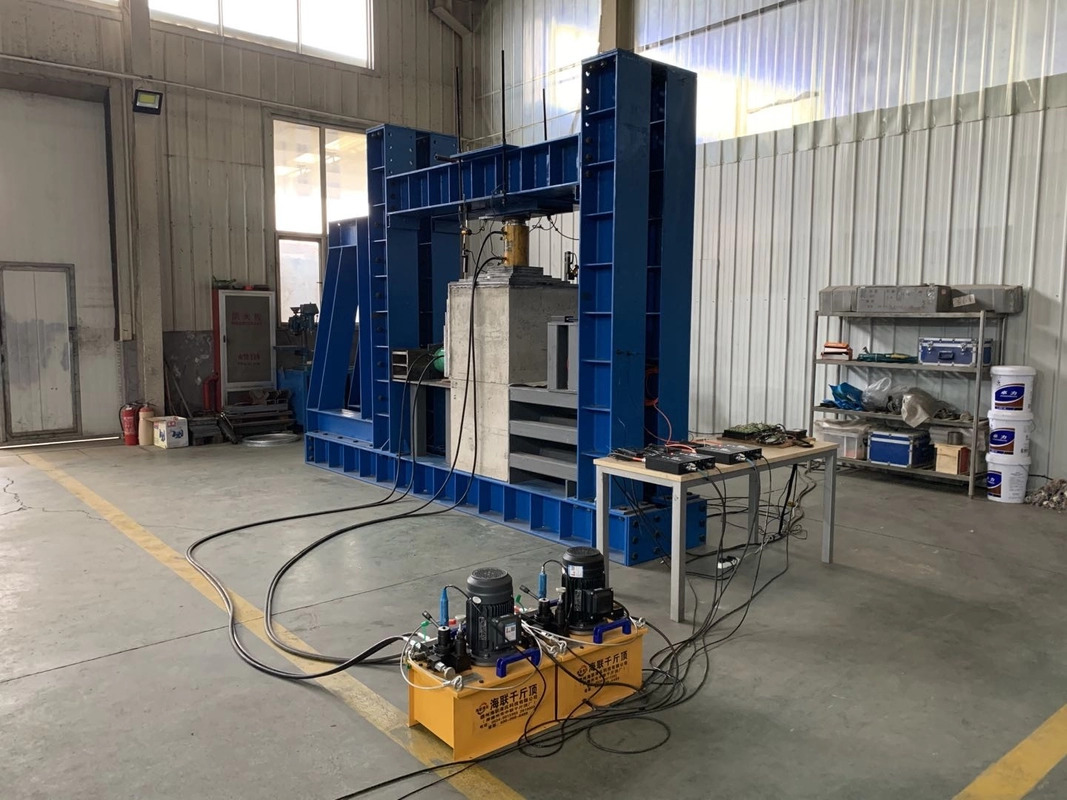

Pile load test equipment

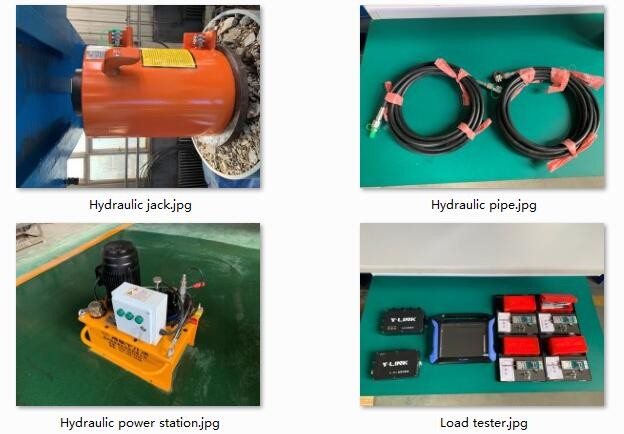

Integrate the complete set of system equipment required for pile load test to help customers complete one-stop procurement, includes:

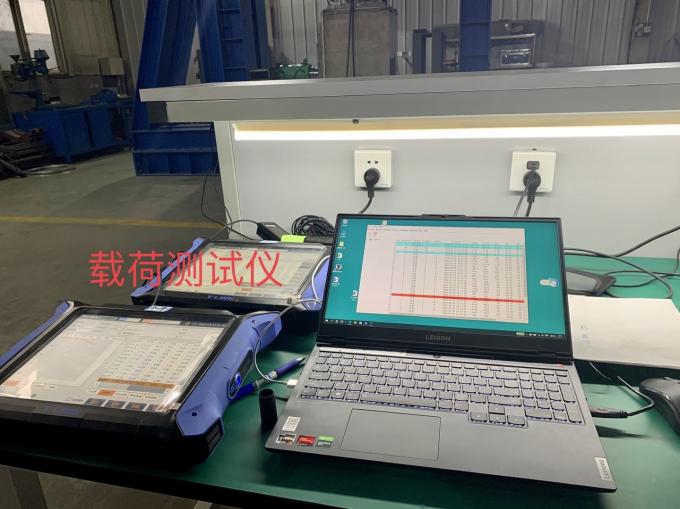

1. Load tester
2. Hydraulic jack
3. Hydraulic pipe
4. Hydraulic power station
5. Displacement senor
Characteristic
1. high-performance testing device for the field of pile static load testing in various engineering industries.
2. It provides high test accuracy, high security, stable performance, friendly interface and convenient operation.

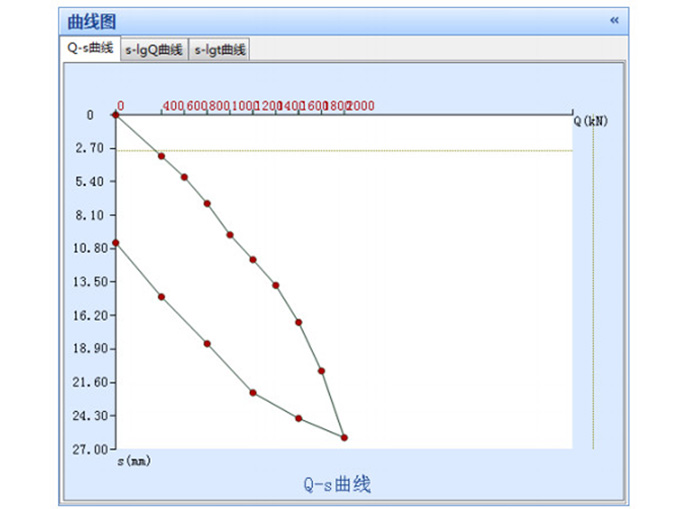

3. Test data graphs and waveforms are convenient and clear for browsing with curve reversal and translation supported.
4. Provides various printing formats such as graphs, schedules, summary tables, and custom report formats.
5. Support single pile vertical compression load test, single pile vertical pull load test, single pile horizontal cyclic load test, anchor pull testing, composite foundation load test, deep (shallow) flat plate load test, In-situ load test, rock foundation load test, self-balance test, etc
